TC909 Artnet LED Controller

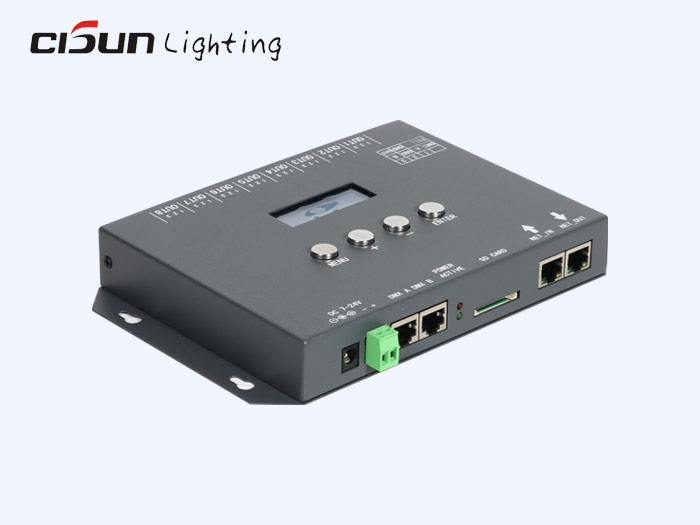

The TC-909 controller is a controller with LCD digital interface display, which converts Art-Net signals into various pixel lamp chip signals. It adopts standard Ethernet transmission and additionally accepts DMX512 signal control. Eight output ports, can control a variety of LED driver chips, support automatic addressing function, convenient for users to access different types of lamps, and realize unified control of different lamps. The input network port can be directly connected to the computer network card, and can also be connected to the computer network card through a switch or photoelectric converter. It is widely used in buildings, municipal lighting, stage scenery, entertainment venue decoration, etc.; it can achieve various running changes such as horse racing, running water, tailing, color painting, scanning, raindrops, etc. It has the advantages of convenient wiring and simple use.

Download TC909 Conntroller User Manual-V2.0

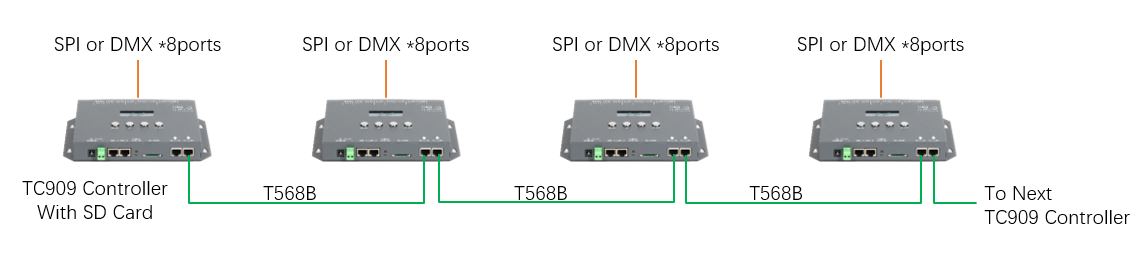

TC-909 led controller can be used as a single unit; multiple units can also be used in cascade [ Max 128PCS TC-909 controllers cascade control by 1U (170 pixels) per 1 port ].

The TC-909 controller is equipped with professional parameter setting software, supports the recording and export of Madrix lighting software programs, and generates *.BIN files and stores them on the SD card; when using Madrix online, Artnet interface data playback is preferred, and it can be played directly when offline Pattern file on SD card.

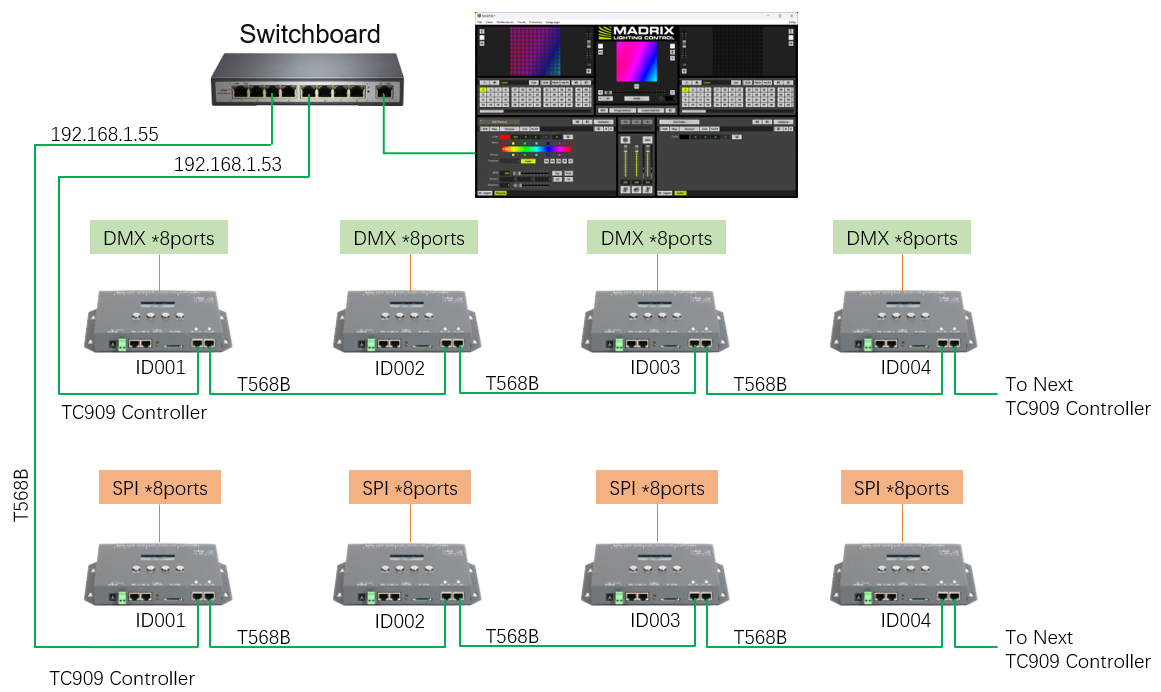

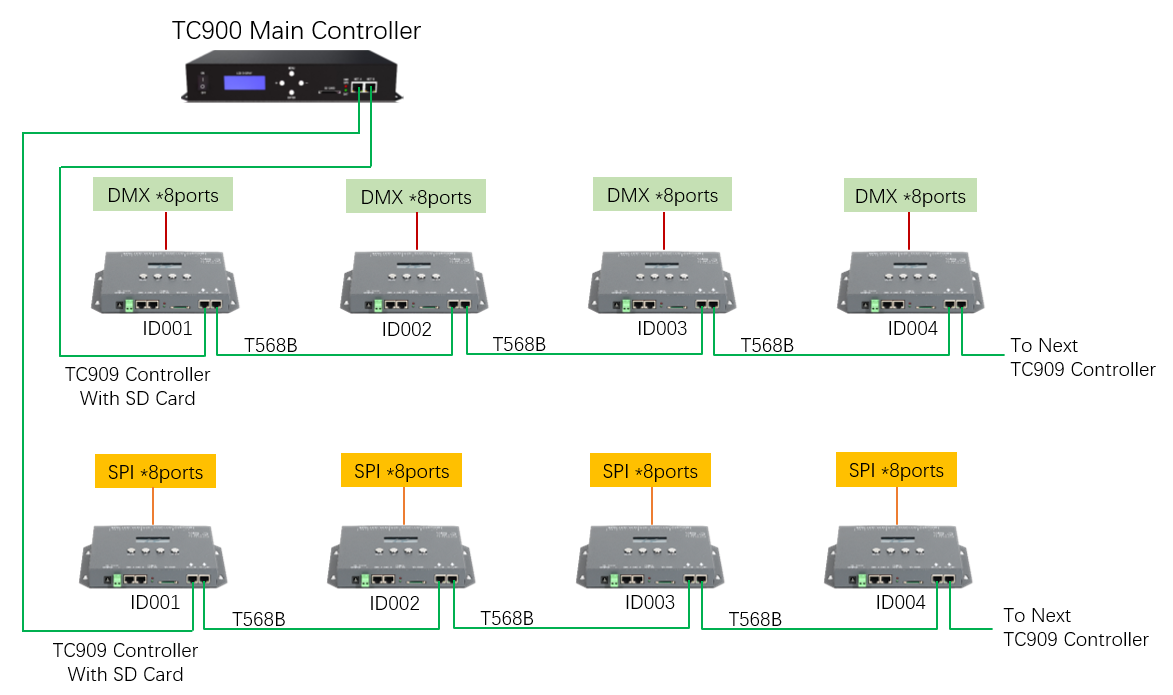

TC909 controller and LED lights wiring connection standard

TC909 controller function
1. TC909 controller can support recording MADRIX effects.
2. TC909 controller supports online update of SD card program.
3. TC909 controller supports DMX512 to write LED lights address code online.
4. TC909 controller supports MADRIX online playback, SD card program is played when offline, and multiple devices are synchronized.

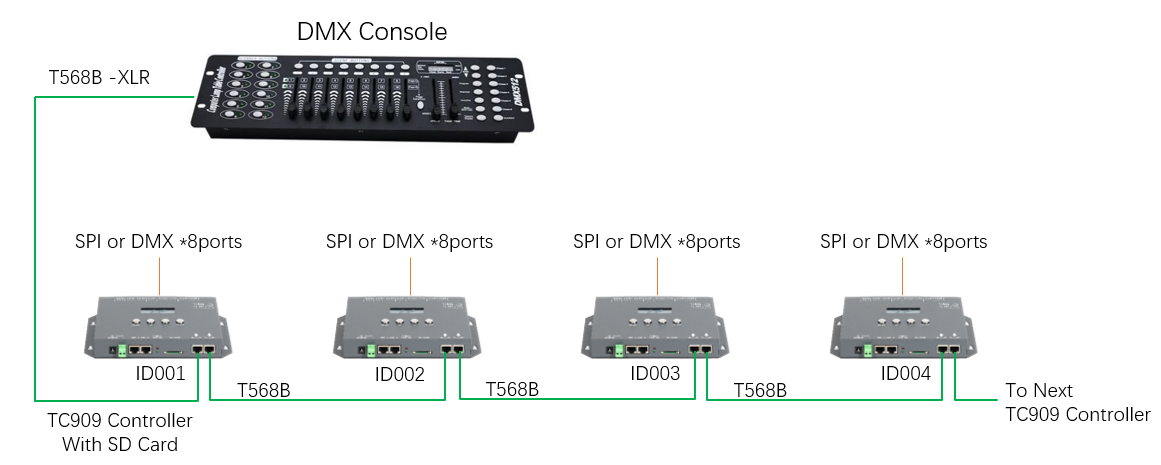

5. TC909 Artnet controller supports DMX console to directly call SD card program (each controller occupies 8PCS DMX console channels)

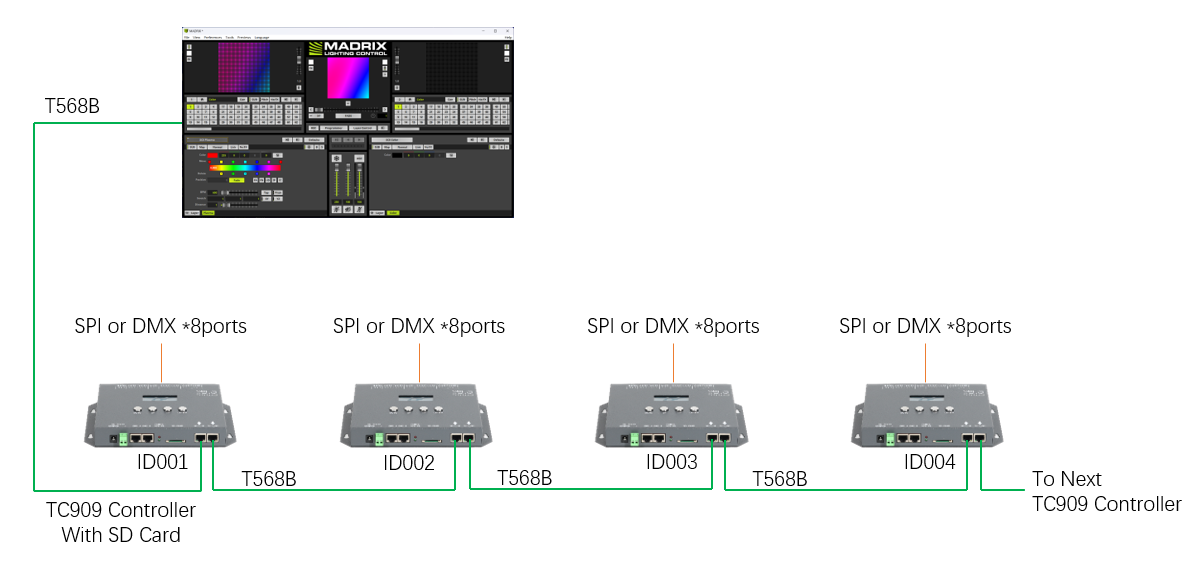

TC909 direct connection mode

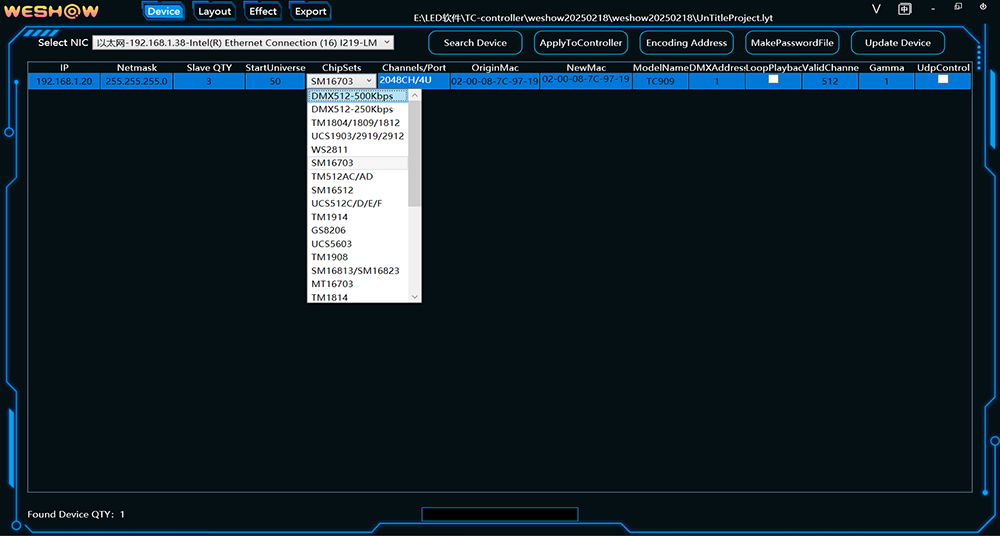

TC909 controller setting software Weshow interface

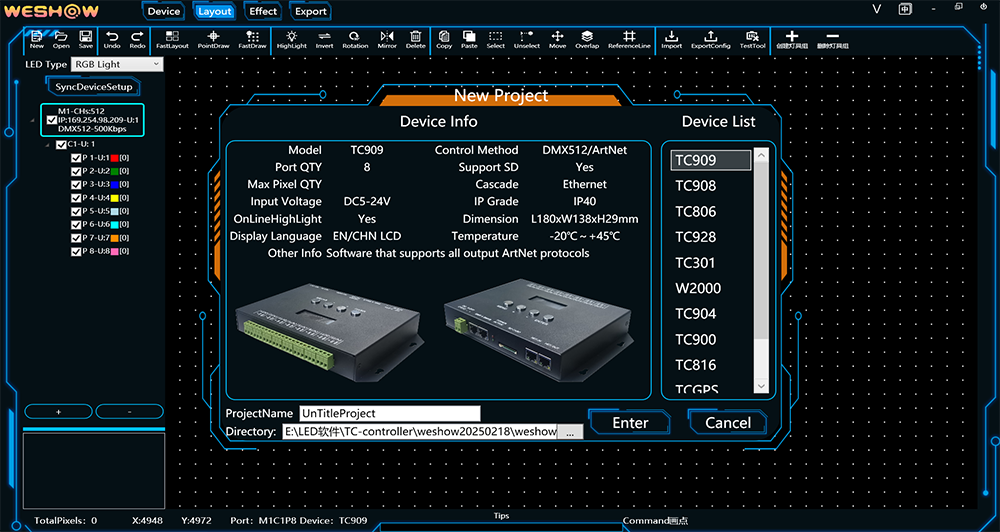

The Weshow software can directly record the program in the MADRIX software for the TC909 controller and save these effects to the SD card. And it can be recorded and erased repeatedly to achieve the most ideal lighting effect.

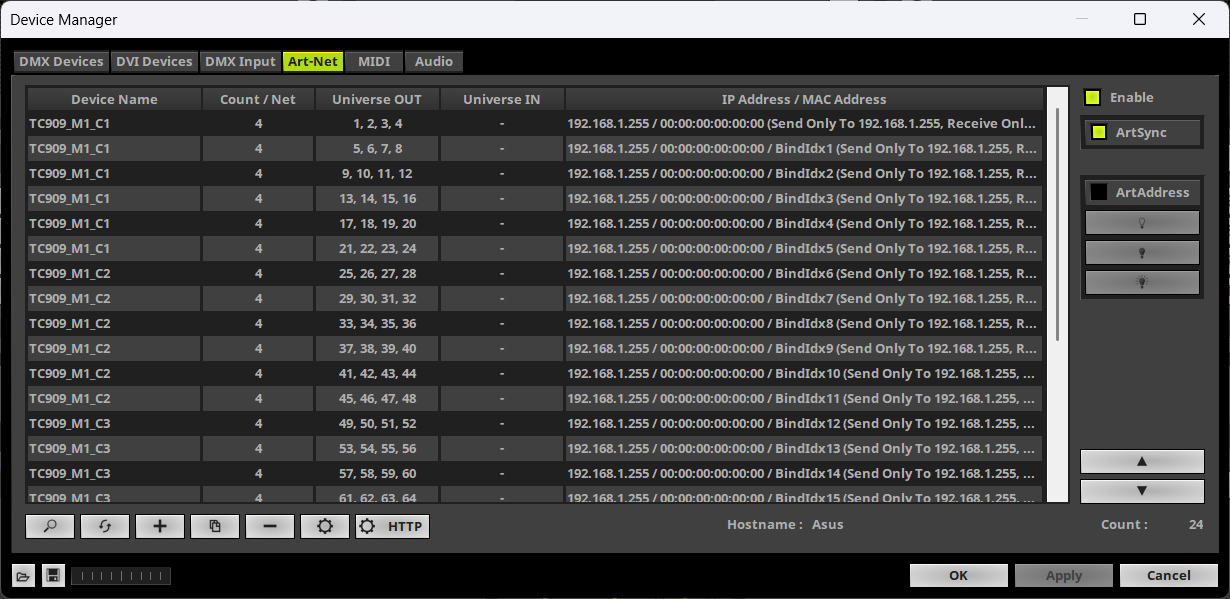

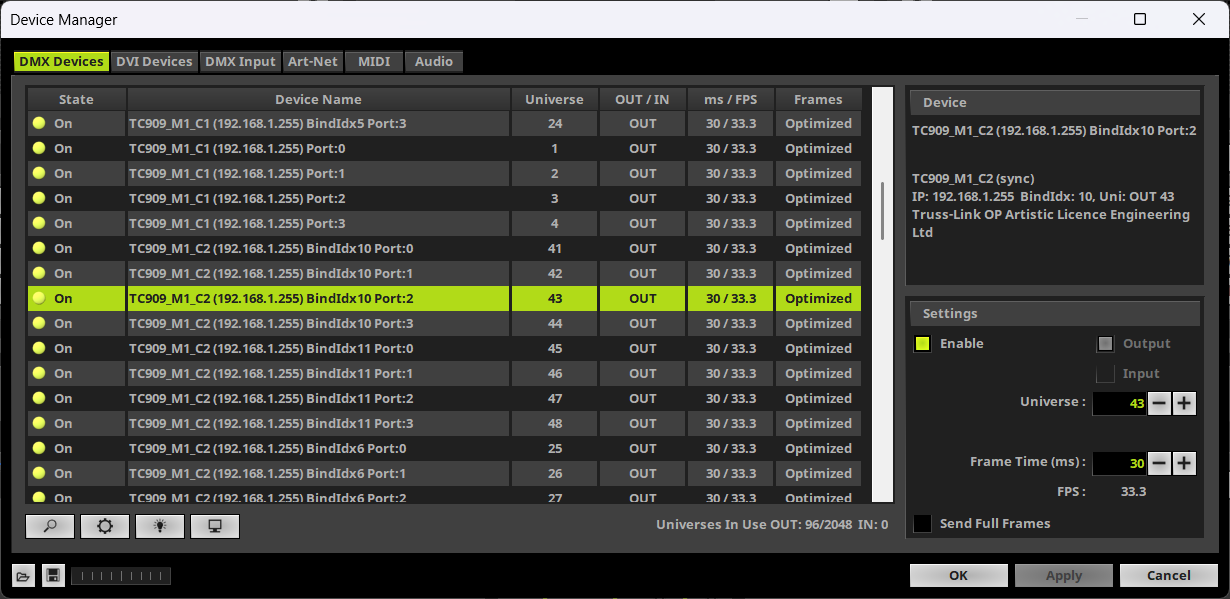

TC909 controller found by MADRIX software device management
