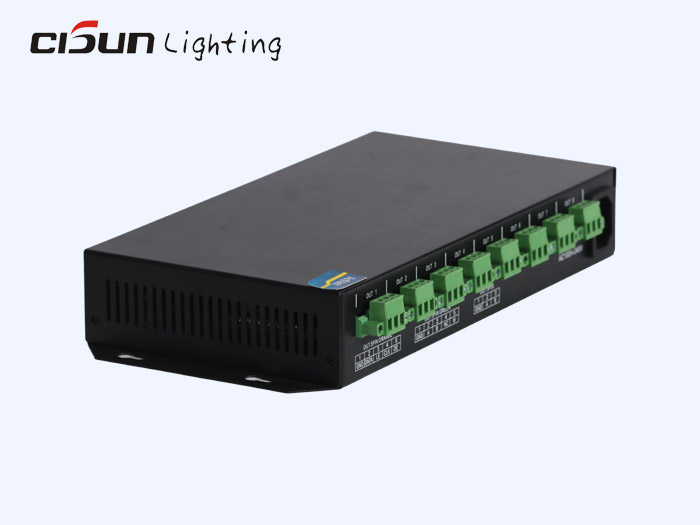

MR A28D ARTNET To DMX LED Controller

MR A28D ARTNET To DMX LED Controller

MR-A28D control system is based on the ArtNet protocol of Ethernet network to achieve communication transmission, and the host computer soft-send multi-channel data to DMX512 protocol form sent to DMX512 lamps.
  • Product Model :

    MR-A28D
  • Output Port :

    8 Ports
  • Protocol :

    DMX512
  • Control Mode :

    ARTNET Online
  • Dimensions :

    283*134*45mm
  • Net Weight :

    1.45 Kg
  • Software :

    MR player /MADRIX
  • Product Details
  • Packing&Size

MR-A28D control system is based on the ArtNet protocol of Ethernet network to achieve communication transmission, and the host computer soft-send multi-channel data to DMX512 protocol form sent to DMX512 lamps. MR-A28D control system adopts high-performance FPGA processor, data processing is efficient and stable, follows the standard ArtNet protocol, provides 2 RJ45 network interface, with other conventional network equipment, can achieve a variety of network topologies. MR-A28D provides 8 standard DMX512 data output ports, which can output a total of 8×512 data and support extended protocol, compatible with ArtNet protocol lighting control software, such as: Madrx3, Madrx5, Programmer, Pharos, Sunlite, Luminair, Arocos, MA Console, Skande, etc. Widely used in LED lattice and stage lighting control system requiring a large amount of DMX512 data, often used in TV stations, stage performances, night tour, light and shadow show 3Dmapping show and other places.


I.  Features

1. MR-A28D Supports ArtNet Protocol, Based on TCP/IP Ethernet Protocol;

2. MR-A28D Standard USITT DMX512/1990 General Grotocol and Extended Protocol

3. MR-A28D Device Supports Cascade Transmission of 254 Devices;

4. MR-A28D Supports 64 Universer and a Single Port Can be Expanded by 8 Times,
    That is, 4096 Channels (Depending on Chip Performance);

5. The User Can Set up Two Different IP Addresses

6. Support 32-65536 Grayscale 16Bit, Support 262144 Grayscale, Restore image Details;

7. Independent Brightness Control of 3 Primary Colors, Easy to Adjust White Balance;

8. Support R,RB,RGB,RGBW,RGBWY, and Multi-Color Mixing Control;

9. Accurate Gamma Correction Algorithm, in Line With Human Visual Sense;

10. Support 120Hz Frame Rate to Ensure High-definition Display and 3D Requirements;

11. Using Ethernet Interface and TCP/IP Protocol, The Distance is 100 Meters;

12. The LCD Display Module Displays the Controller Parameters and Status in Time;

13. Support The Device ID Number Data Flow Sequence and Fixed Arrangement;

14. Two RJ45 Ports, Support Mixed Cascading; Automatic Software Display Status;

15. Variety of Chip Control is Integrated, and we Change the Control Chip Type,
      Clock Frequency, Duty Cycle, Gray Scale Level and Other Parameters Through Software Setting;

16. Support IP Grouping Function, use Switch Parallel Scheme

17. 8-Port Output, Unlimited Number of Single-Port Load Points, Self-test;

18. Support Dual backup, a Controller is Broken or a Disconnected Display is Not Affected;

19. Support Device Port Anti-interference and Leakage Design;

20. Support Overcurrent and Overvoltage Protection, Can run for a Long Time;

21. Equipment Network Port, Port OutPut, Surge Protection: 1.5KV;

22. Support Severe Working Environment -40℃-80℃, Normal Operation Without Failure;

23. Network Adaptive or Mandatory 100M Can be Set to Support More Loading;

24. Different Network Segments Can be Set up to Avoid Mutual interference With
      Multiple Sets of ArtNet Data in the Same Network ;

25. Support all tTypes of DMX Chip Address and Parameter Writing;

26. Support Online One-Key Upgrade of Device Firmware.

II.  Output Port Definition

MR-A28D Controller Uses 8pcs 3pin Terminal interface Output Signals.
3-Pin Terminals Sort
Sequentially From Left to Right,as Below

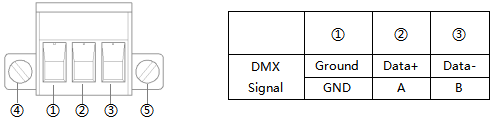

MR-A28D Signal Port


Remark:④⑤ is 3Pin Port Fixing Screw Holes, Not a Signal Terminal.

III.  Controller Three View Size Chart

MR-A28D Front View


MR-A28D Front View


MR-A28D Vertical View:

MR-A28D Vertical View


MR-A28D Rear View

MR-A28D Rear View

Note: Size in the Above Three Views is in mm (mm)

Basic Parameter Table

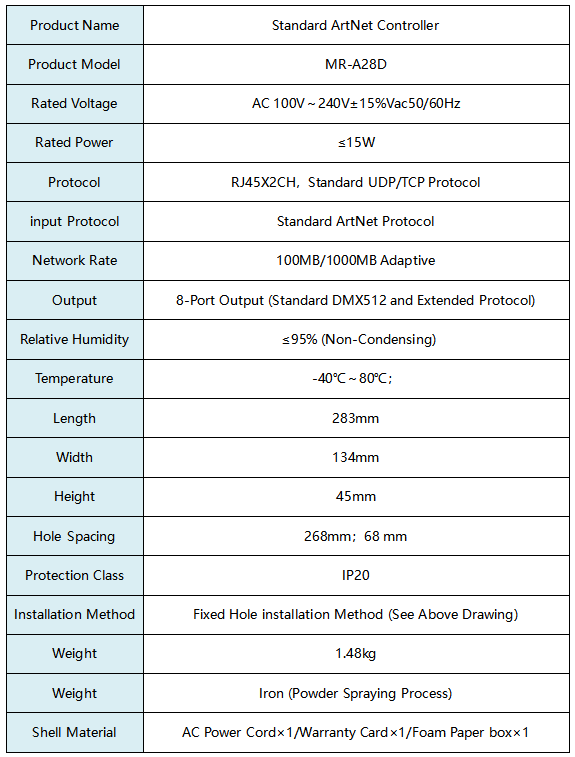

MR-A28A Parameters


Install and Use


I. Console Mode (Connected With MA Lighting Console)

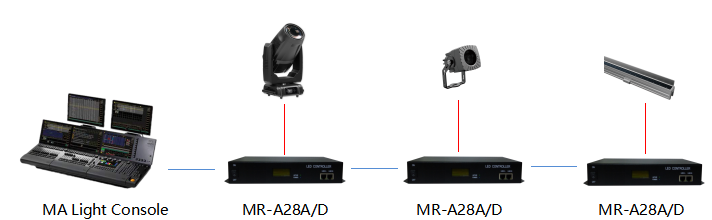

MR-A28D ArtNet Device is Connected to The Network Port of the MA Lighting Console, as Shown Below:

MR-A28D Applications



IIOnline Mode (Connected With The Computer )

The MR-A28D ArtNet Device is Connected to The Computer Network Port (Pre-installed Software That Supports ArtNet Protocol), as Shown in The Following Figure:

MR-A28D Applications

Attention Matters


I. Cat.5e Twisted Pair Application Notes



RJ45



568B:orange-white/orange/green-white/ blue/blue-white/green/brown-white/brown

568A:green-white/green/orange-white/blue/blue-white/orange/brown-white/brown

The Controller Connect With Controller by Network With Cascades ,Recommended Purchase [Cross] Line Order: One is For 568B, The Other for 568A;

The Switch Connect With Controller by Network With Cascades, Recommended Purchase  [Cross] Line Order:One is for 568B, The Other for 568A;

Any of The Above Equipment Contact With Computer by Cascades, Recommended Purchase[Direct] line Order: The Both for 568B or 568A;

Note: Follow The Requirements, DNot Define Your Own Network Line Order.

II. Wire and Connecting Method From Lights to Controller

1. Controller Output Port to the Lamp if The Distance is too Far,Recommended for
    The use of 485 Dedicated lines or Cat.5e Kind Shielded Cable Connection,The best Connection way is:

    Orange-A;Orange White-B;Green-Addressing+(ADRI/PO+);Green White-Addressing-(ADRI/PO-);Other Connect to GND(Ground)

2. At the end of each road sSignal That is Between A and B to add a 120R Terminal Resistance.

3. Do Not Connect The Two Wires that are intertwined to Receive The Signal, Such as Orange and Orange White Connect to A+or B- at Same Time.

IIII. Controller Connect to Ground Application Notes

    MR-A28D Controller Using Metal case,Rated Supply Voltage is AC100V-240V,Therefore, it is Necessary to Ensure The Effective Grounding of The Controller Equipment and The Effective Grounding of The Metal Outer BOX。

    And the Output Port of The Controller is Exposed to the Metal contact surface,therefore, according to the requirements of safety regulations,to ensure safe use of the operator,signal output port GND signal must be effectively grounded.
