MR A28A ARTNET To SPI LED Controller

MR-A28A control system is based on the ArtNet protocol of Ethernet network to realize communication transmission, and the host computer soft-sends multi-channel data to the SPI lamps in the form of TTL protocol. MR-A28A control system adopts high-performance FPGA processor, data processing is efficient and stable, follows the standard ArtNet protocol, provides 2 RJ45 network interface, with other conventional network equipment, can achieve a variety of network topologies. MR-A28A provides 8 standard TTL data output ports, which can output a total of 8×512 data and support extended protocol, compatible with ArtNet protocol lighting control software, such as: Madrx3, Madrx5, Programmer, Pharos, Sunlite, Luminair, Arocos, MA Console, Skande, etc. Widely used in LED lattice and stage lighting control system requiring a large amount of TTL channel data, often used in TV stations, stage performances, night Tours, light and shadow shows, immersive shows, 3Dmapping shows and other places.

I. Features

1. MR-A28A Supports ArtNet Protocol and is Based on TCP/IP Ethernet Protocol;

2. MR-A28A Outputs TTL Level Signals (2 Channels) and Differential Signals (1 Channel);

3. MR-A28A Device Supports Cascade Transmission of 254 Devices；

4. MR-A28A Supports 64 Universes and a Single Port Can be Expanded by 8 Times,
    That is, 4096 Channels (Depending on Chip Performance)；

5. The User Can Set up Two Different IP Addresses；

6. Support 32-65536 Grayscale 16Bit, Support 262144 Grayscale, Restore image Details;

7. Independent Brightness Control of 3 Primary Colors, Easy to Adjust White Balance;

8. Support R,RB,RGB,RGBW,RGBWY, and Multi-Color Mixing Control;

9. Accurate Gamma Correction Algorithm, in Line With Human Visual Sense;

10. Support 120Hz Frame Rate to Ensure High-definition Display and 3D Requirements;

11. Using Ethernet Interface and TCP/IP Protocol, The Distance is 100 Meters;

12. The LCD Display Module Displays the Controller Parameters and Status in Time；

13. Support The Device ID Number Data Flow Sequence and Fixed Arrangement；

14. Two RJ45 Ports, Support Mixed Cascading; Automatic Software Display Status;

15. A Variety of Chip Control is Integrated, and we Change the Control Chip Type,
      Clock Frequency, Duty Cycle, Gray Scale Level and Other Parameters Through Software Setting；

16. Support IP Grouping Function, use Switch Parallel Scheme；

17. 8-Port Output, Unlimited Number of Single-Port Load Points, Self-test;

18. Support Dual backup, a Controller is Broken or a Disconnected Display is Not Affected；

19. Support Device Port Anti-interference and Leakage Design;

20. Support Overcurrent and Overvoltage Protection, Can run for a Long Time;

21. Equipment Network Port, Port Output, Surge Protection: 1.5KV;

22. Support Severe Working Environment -40℃-80℃, Normal Operation Without Failure;

23. Network Adaptive or Mandatory 100M Can be Set to Support More Loading;

24. Different Network Segments Can be Set up to Avoid Mutual interference
      With Multiple Sets of ArtNet Data in the Same Network ;

25. Support Online One-Key Upgrade of Device Firmware.

II. Output port definition

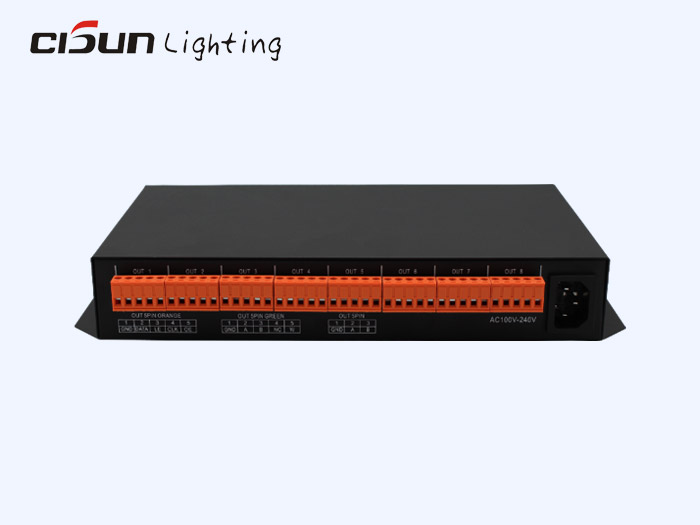

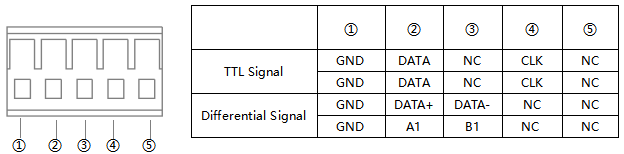

MR-A28A controller uses 8/ 5pin terminal interfaces to output signals

5Pin terminals are sorted from left to right ,as below：

Note：MR-A28A Supports TTL Signal and Differential Output.

III. Controller Three View Size Chart

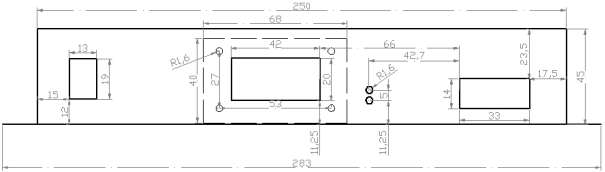

MR-A28A Front View：

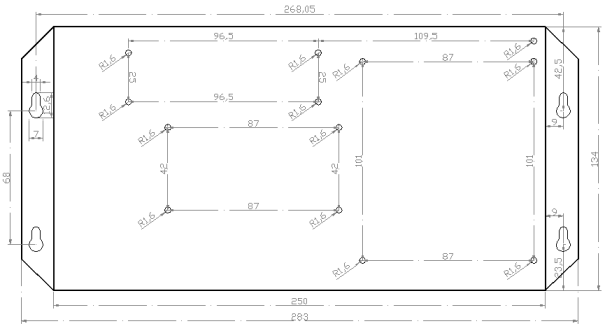

MR-A28A Vertical View：

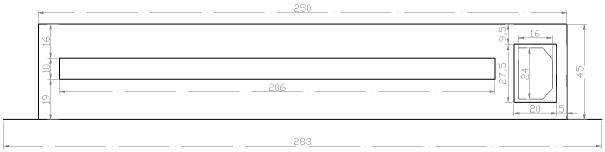

MR-A28A Rear View

Note: Size in the Above Three Views is in mm (mm)

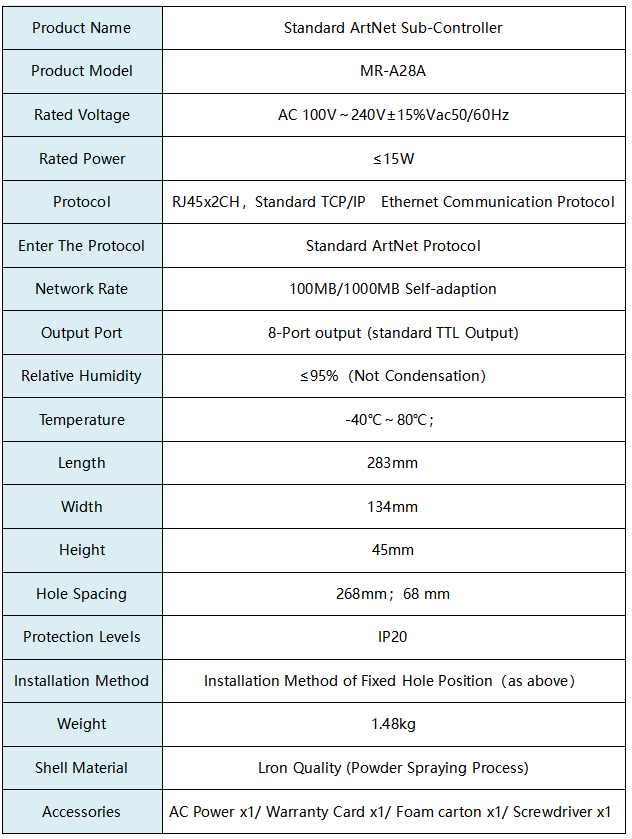

Ⅳ. Basic Parameter Table

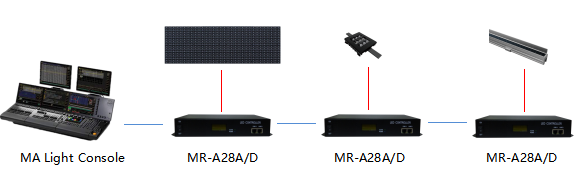

I. Console Mode (Connected to the MA Light Console)

MR-A28A ArtNet Device is Connect to MA Light Console Network Port, as Below ：

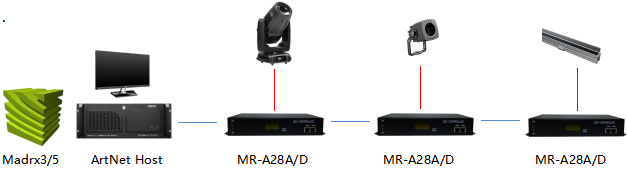

II. Computer Mode (Connected to the Computer)

MR-A28A ArtNet Device Connects to the Computer Network Port (Pre-install Supporting ArtNet Protocol Software) , as Below :

Attention Matters

I. Cat.5e Twisted Pair Application Notes

568B：orange-white/orange/green-white/ blue/blue-white/green/brown-white/brown

568A：green-white/green/orange-white/blue/blue-white/orange/brown-white/brown

Equipment and Equipment Cable, [Cross]: One end is 568B, and One end is 568A.

Device and Switch Cable, [Crossover]: One end is 568B, and One end is 568A.

Equipment and Computer Cable, [Straight]: One end is 568B, and One end is 568A.

Note: Follow The Requirements, Do Not Define The Network Cable Sequence by Yourself.

II. Wire and Connecting Method From Lights to ControllerII.

1. If the Distance Between the Controller Output Port and the Lamp is Too far,
    it is Recommended to use 485 Special wire or Over Five or above Screen wire Connection.
    The best Connection is: Orange-A; Orange-white-B; Other GND (Ground).

2. A Terminal Resistance of 120R Shall be Added Between A and B at the End of Each Channel Signal.

3. Do not use Two Wires Wrapped Together at the Same Time, Such as Orange and Orange White, to A or B at the Same Time.

III. Key Application Point of The Controller Grounding

   MR-A28A Controller use a Metal Shell , the Rated Power Supply Voltage is AC100V-240V,
   so the Controller Equipment and the Metal Outer Box Must be Effectively Grounded .

   Because the Controller Signal Output Port Has the Exposed Metal Surface,
   The GND Signal Output Port Must be Effectively Grounded in Order to Ensure the Safe Application of the Operator Under the Safety Regulations.
